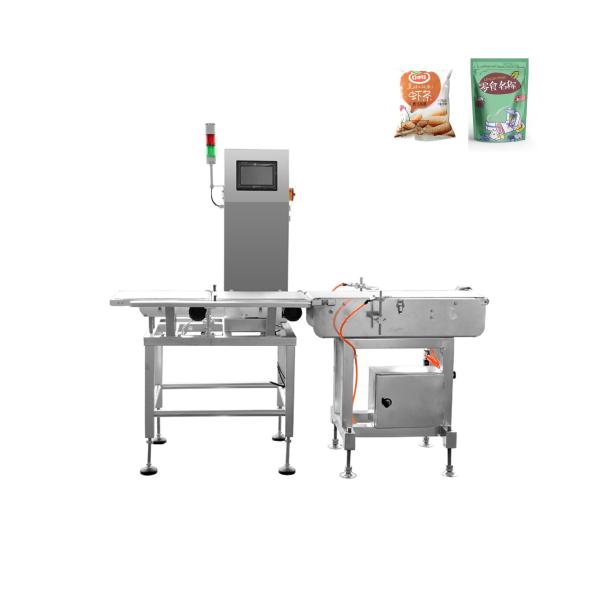

Automatic Food Weight Check Check Weigher In Packing Line With Rejection
High speed 0.2g scale interval automatic check weigher machine with rejector
Application of the Check Weigher
ZH-DW series check weigher is suitable for in line weight check of food, medicine, chemical, consumer
product, etc.
| Technical Specification |
| Model | ZH-DW160 | ZH-DW230S | ZH-DW230L | ZH-DW300 | ZH-DW400 | ZH-DW500 | ZH-DW600 |
| Weighing Range | 10-600g | 20-2000g | 20-2000g | 50-5000g | 0.2-10kg | 0.5-20kg | 10-50kg |
| Scale Interval | 0.05g | 0.1g | 0.1g | 0.2g | 1g | 1g | 5g |
| Best Accuracy | ±0.1g | ±0.2g | ±0.2g | ±0.5g | ±1g | ±2g | ±5g |
| Max Speed | 250 pcs/min | 200 pcs/min | 155pcs/min | 140pcs/min | 105pcs/min | 75pcs/min | 75pcs/min |
| Belt Speed | 70m/min | 70m/min | 70m/min | 70m/min | 70m/min | 60m/min | 60m/min |
| Product Size | 200mm (L)
150mm (W) | 250mm (L)
220mm (W | 350mm (L)
220mm (W) | 400mm (L)
290mm (W) | 550mm (L)
390mm (W) | 700mm (L)
490mm (W) | 1000mm (L)
590mm (W) |
Weighing
Platform
Size | 280mm (L)
160mm (W) | 350mm (L)
230mm (W) | 450mm (L)
230mm (W) | 500mm (L)
300mm (W) | 650mm (L)
400mm (W) | 800mm (L)
500mm (W) | 1200mm (L)
600mm (W) |
| No. of Sorting Segment | 2 Segments or 3 Segments |
| Rejector | air blow, Pusher, shifter |
| Power Parameter | 220V/110V 50/60Hz |
| Protection Level | IP30/IP54/IP66 |
| Frame Material | SUS304 |
Technical Feature
1. High sensitivity HBM sensor is adopted. stable sensitivity and no need to do calibration often.
2. Auto dynamic zero track technology is adopted, ensuring the accuracy.
3. Various options of reject structure and unqualified product can be removed automatically.
4. Friendly designed touch screen HMI, simple and easy to operate and setting.
5. 100 sets of parameters can be saved. Production data can be statistics and saved to USB.
6. Parameter value can be set automatically by input the product information and weighing requirements.
Machine Details
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
